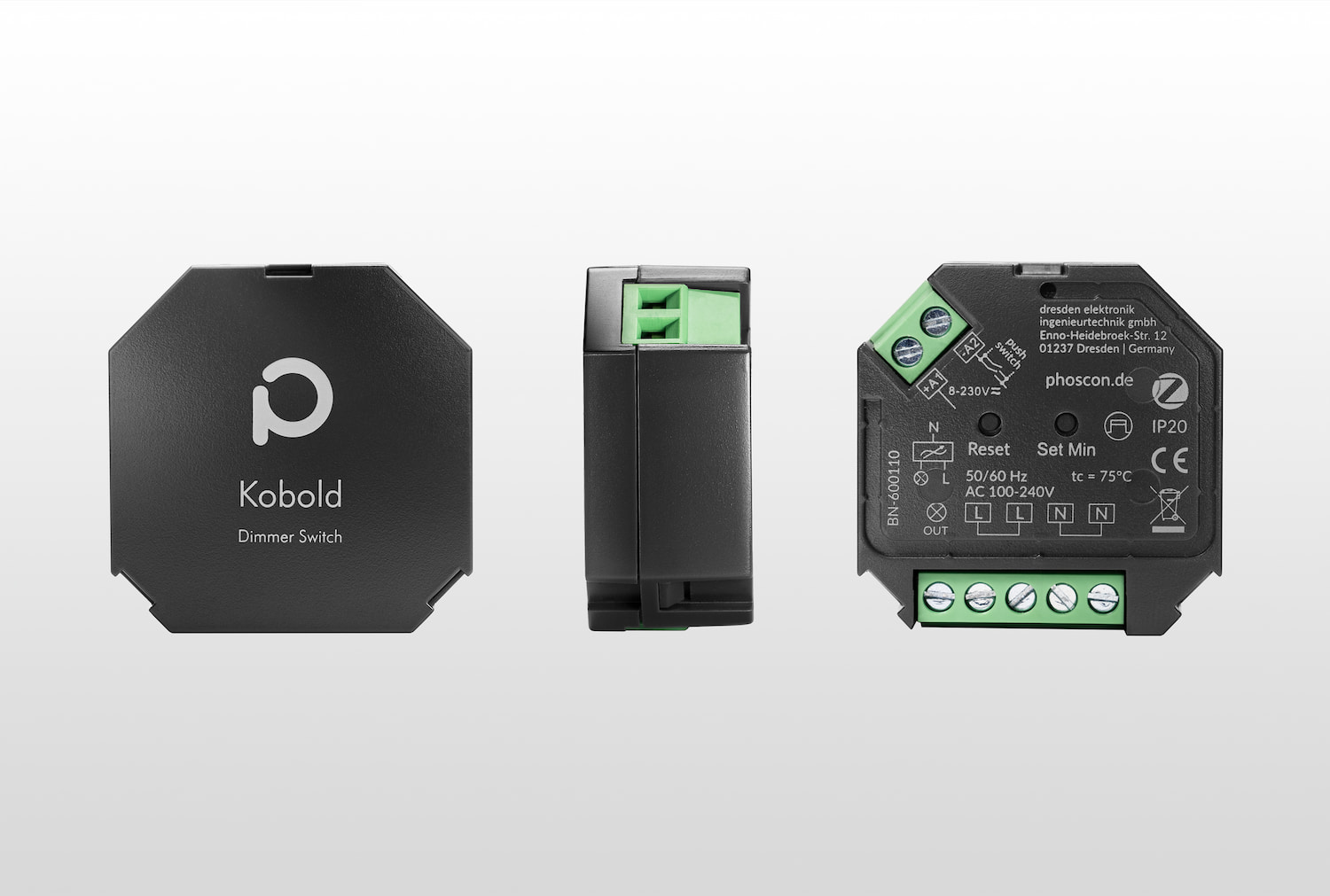

Kobold

smart dimmer switch

SKU: BN-600110

39,95 €*
incl. VAT
33,57 €*
excl. VAT
* Unit price, plus shipping costs, if required

Price scale

from 5 units for each gross 38,09 €* (Net 32,01 €*)
You save 4,65%
from 10 units for each gross 37,21 €* (Net 31,27 €*)
You save 6,85%
from 50 units for each gross 34,36 €* (Net 28,87 €*)
You save 14,00%

Description

  • Brings classic dimmable luminaires into the wireless Smart Home
  • Simple retrofitting for existing switch modules
  • High signal range due to power amplifier
  • Dimming of loads per phase cutting



Get all information on the page of phoscon.

Technical data

Input voltage 100—240 VAC
Current 1.8 A
Output power max. 400 W operation of halogen lamps
max. 200 W operation of LED lamps
or electronic ballasts
Transmitting power max. 10 mW
Signal range 2—3 rooms
about 200 m in free line of sight
Radio frequency 2.4 GHz
Radio standard IEEE 820.15.4 / Zigbee 3.0
Storage temperature -20 °C to 55 °C
Operating temperature -20 °C to 55 °C
Dimensions 45 mm × 45 mm × 20 mm
