2,4 GHz AVR | deRFmega128-22C02

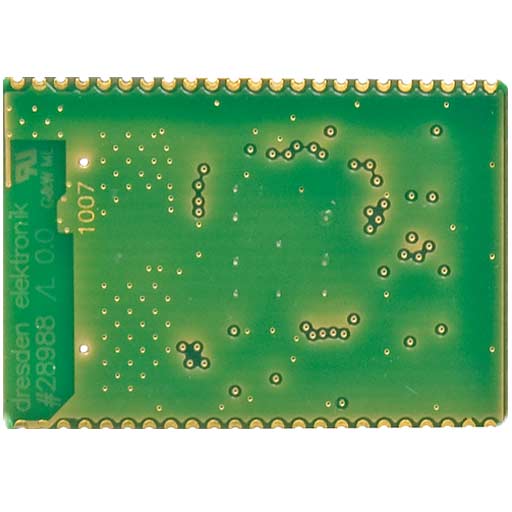

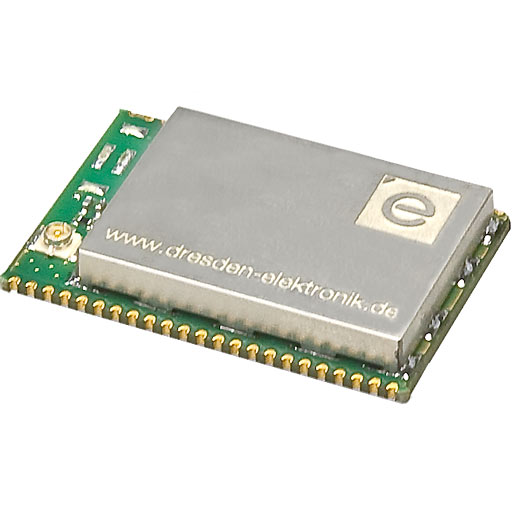

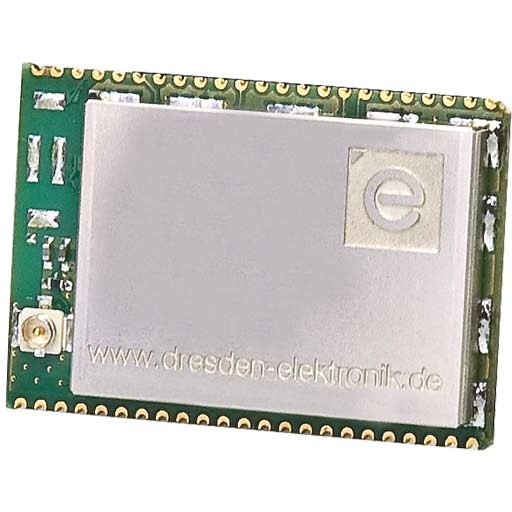

Solderable 2.4 GHz radio module with U.FL coaxial connector based on the single-chip microcontroller ATmega128RFA1 from Atmel

SKU: BN-028987

Price upon request

Technical data

  • 30 x 20.5 mm
  • Single-Chip 8Bit-AVR-Microcontroller ATmega128RFA1
  • Transceiver integrated
  • 2.4 GHz
  • U.FL coaxial socket for connecting external antennas
  • I2C, SPI, UART, USB, ADC interfaces
  • ETSI compliant; FCC Part 15
  • Application for Zigbee, 6LoWPAN, RF4CE and proprietary ISM
